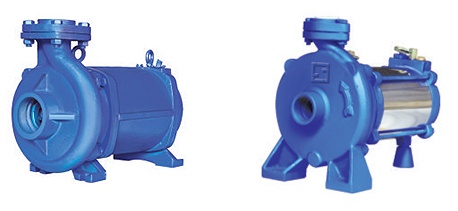

Openwell Submersible Monoset Pumps (SS or MS Series)
| Power Range: | 0.37 kW to 1.5 kW (0.5 HP to 7.5 HP) |
| Speed: | 2880 rpm |
| Versions: | 1Ø 200-240 V, 50 Hz, AC Supply CSCR, 3Ø 380-450 V, 50 Hz, AC Supply |
| Degree of protection: | IP 58 |
| Degree of rotation: | Counter clockwise from driving end |
| Nominal delivery size: | 25, 32, 40, 50 & 65 mm |
| Type of Duty: | S1 (continuous) |
| Liquid: | Clear Water |
- Agriculture
- Domestic
- Drip Irrigation
- Sprinkler Irrigation
- Rural Water Supply
- No suction and priming problem
- Thrust bearing- Carbon vs SS low wear high efficiency
- Noiseless operation
- No need of pump housing
| Part Name | Material |
|---|---|
| Pump casing | Cast Iron / S.S |
| Upper Housing | Cast Iron |
| Lower Housing | Cast Iron |
| Stator Shell | S.S / M.S / C.I |
| Shaft | SS 410 |
| Shaft Seal | Nitrile Rubber |
| Diaphragm | High Nitrile Butyl Rubber |
| Impeller | Cast Iron / Noryl |
| Thrust Assembly | S.S vs Carbon |

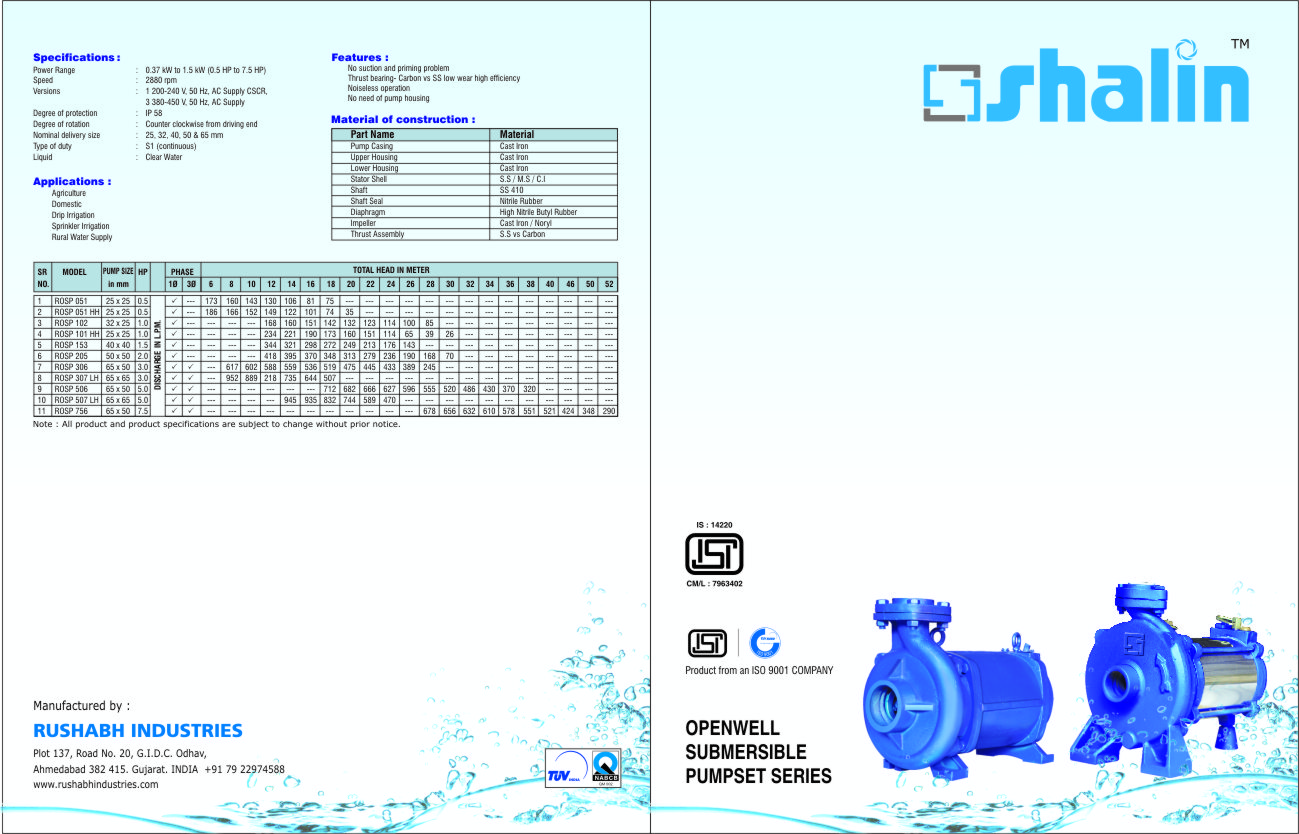

Download Product Catalogue
