Centrifugal Monoset Pumps 1 phase
| Power Range: | 0.37 kW to 3.7 kW (0.5 HP to 5.0 HP) |
| Speed: | 2880 rpm |
| Degree of protection: | IP 44 |
| Degree of rotation: | Clockwise from the driving end |
| Nominal delivery size: | 25, 32, 40, 50, 65, 80 and 100 mm |
| Type of Duty: | S1 (contiuous) |
| Liquid: | Clear Water |
- Small farms
- Domestic
- Irrigation
- Agriculture
- Industrial
- Designed to work in wide voltage range
- Single shaft for motor and pumpset for higher mechanical strength
- Good suction life characteristics
- Dynamically balanced rotating parts to ensure long life
- High operating efficiency resulting in lower power consumption
| Part Name | Material |
|---|---|
| Motor frame | Cast Iron |
| Rear Cover (End shield) | Cast Iron |
| Bracket | Cast Iron |
| Shaft | Stainless Steel |
| Sealing | Graphite coated asbestos |
| Pump Casing | Cast Iron |
| Impeller | Cast Iron |

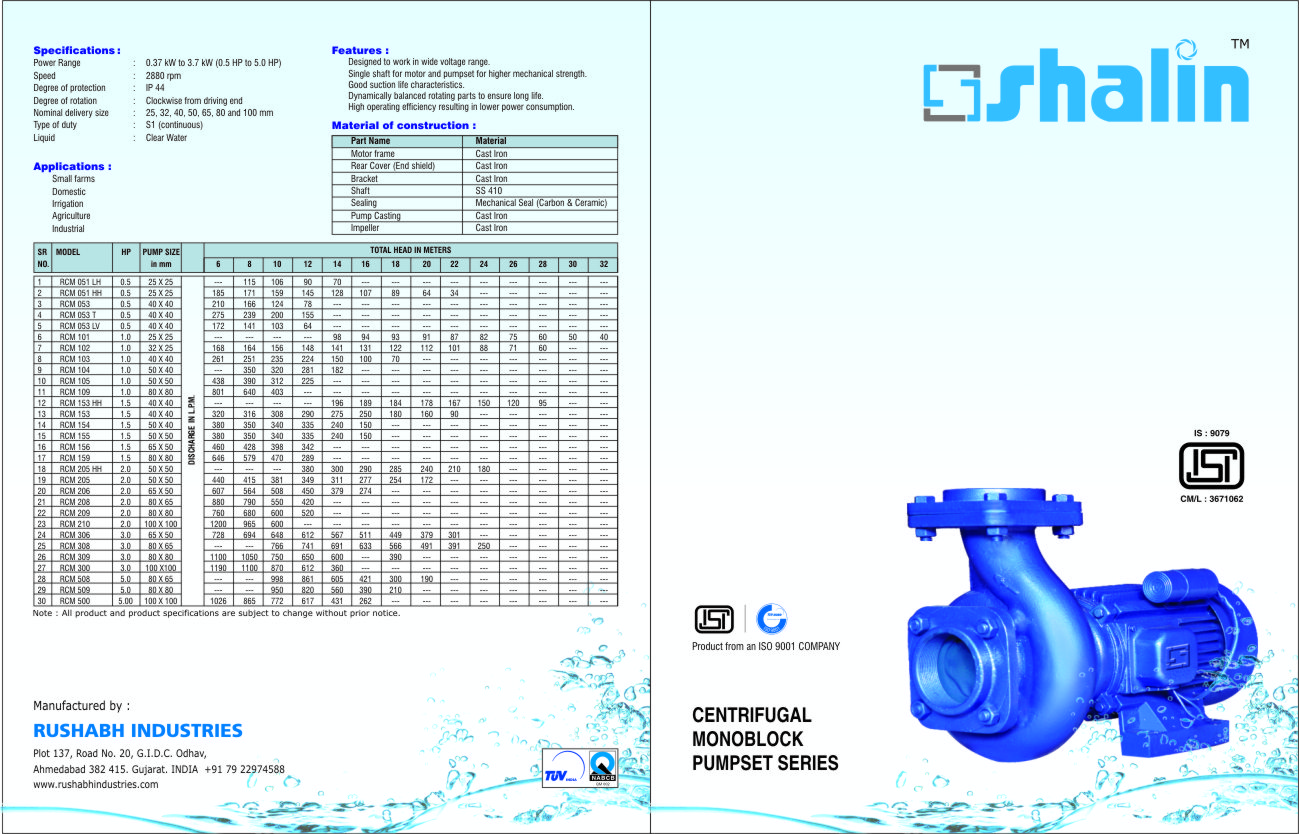

Download Product Catalogue
