SW series self priming centrifugal jet pumpset
| Power Range: | 0.37 kW to 0.75 kW (0.5 HP – 1.0 HP) |
| Versions: | 1Ø, 180 – 240 V, 50 Hz AC Supply (PSC) |
| Speed: | 2880 rpm |
| Direction of Rotation: | Clockwise from the driving end |
| Nominal Pumpset sizes: | 25 x 25 mm |
- Shallow well
- Residential bungalows
- Drinking water supply
- Gardens and lawns
- Water storage tanks
- Small farms
- Domestic pressure boosting
- Better Performance curve in comparison to the other mini moonset and centrifugal pumpsets
- Inbuilt Thermal Overload Protector (T.O.P)
- Dynamically balanced rotor and impeller
- Aluminium extrusion body for better aesthetics
- Designed for optimum efficiency in low power consumption
| Part Name | Material |
|---|---|
| Bracket | C.I |
| Motor frame | Aluminium |
| Shaft | SS 410 |
| Impeller | Brass |
| Pump casing | C.I |
| Sealing | Mechanical Seal (Carbon and Ceramic) |

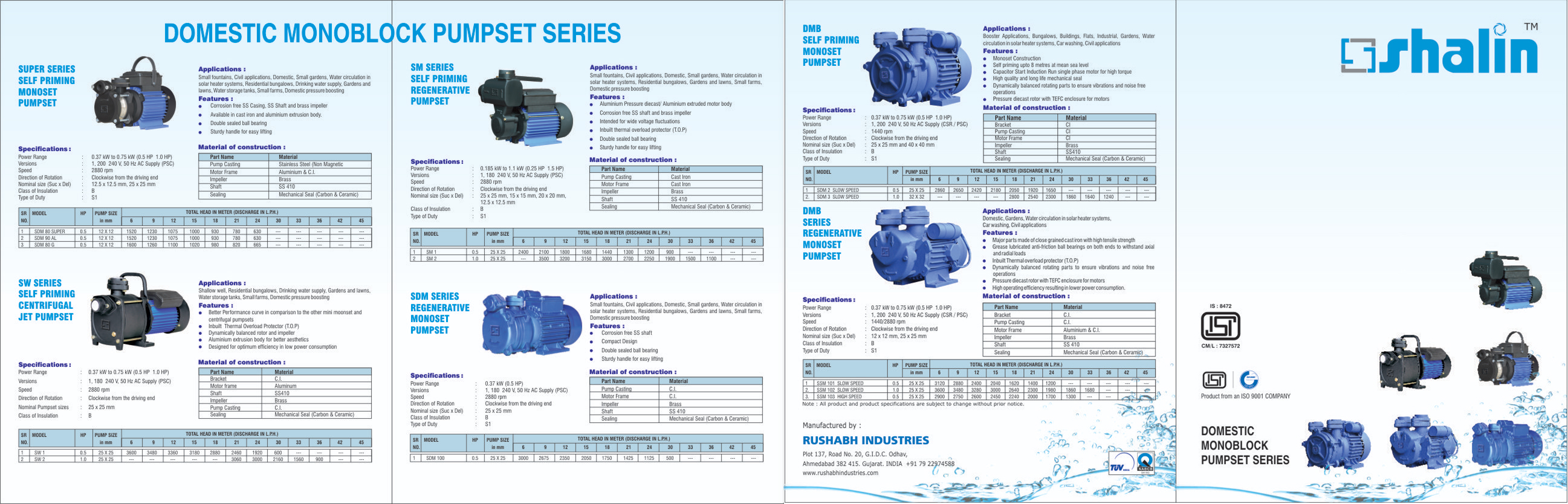

Download Product Catalogue
