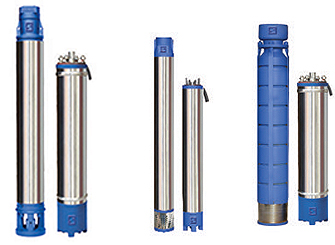

80-100 mm borewell submersible pumpset
| Power Range: | 0.37 kW to 1.5 kW (0.5 HP - 2.0 HP) for 80 mm 0.37 kW to 3.7 kW (0.5 HP – 5.0 HP) for 100 mm |
| Versions: | 1 Ø, 180 – 240 V, 50 Hz AC Supply 3 Ø, 350 – 440 V, 50 Hz AC Supply (For 100 mm only) |
| Speed: | 2880 rpm | Maximum Outer Diameter: | 72 mm and 98 mm |
| Direction of Rotation: | Counter clockwise from the driving end |
| Available outlet sizes: | 25, 32, 38 mm for 80 mm 25, 32, 38, 50, 65 mm for 100 mm |
| Duty: | S1 |
| Method of Starting: | CSR |
| Liquid: | Clear Water , RL Oil |
- Irrigation and Drip Irrigation
- Domestic Use
- Industrial Applications
- Sprinkler Systems
- Gardening
- Rural Water Supply
Motor
- Higher operating efficiency
- Dynamically balanced rotor
- Special water resistant PVC coated high quality copper winding wire
- Motor portion covered with corrosive resistance Stainless steel
- Floating impeller design prevents blockage
- Thrust bearing with SS 304 tilting pad segment with carbon plate
Pump
- Corrosion and abrasive resistant parts made of stainless steel, high strength engineering polymers and special alloy materials
- Fitted with NRV in discharge outlet to prevent backflow
- Designed for optimum efficiency
PUMP
| Part Name | Material |
|---|---|
| Non Return Valve housing | C.I |
| Outer Shell (Pipe) | Stainless Steel |
| Impeller | Noryl |
| Diffuser | Noryl |
| Stop Ring | SS 304 |
| Intermediate Bearing | SS 304 / NBR |
| Suction Inter Connector | C.I |
| Pump Shaft | SS 410 |
| Coupling | SS 410 |
MOTOR
| Part Name | Material |
|---|---|
| Outer Shell | Stainless Steel |
| Diaphragm | High Nitrile Rubber |
| Lower Housing | C.I |
| Upper Housing | C.I |
| Shaft | SS 410 |
| O Ring | High Nitrile Rubber |
| Cable Connector Bush | TPE |
| Mechanical Seal | Carbon vs Ceramic / Nitrile Rubber |
| Sand Guard | Nitrile Rubber |

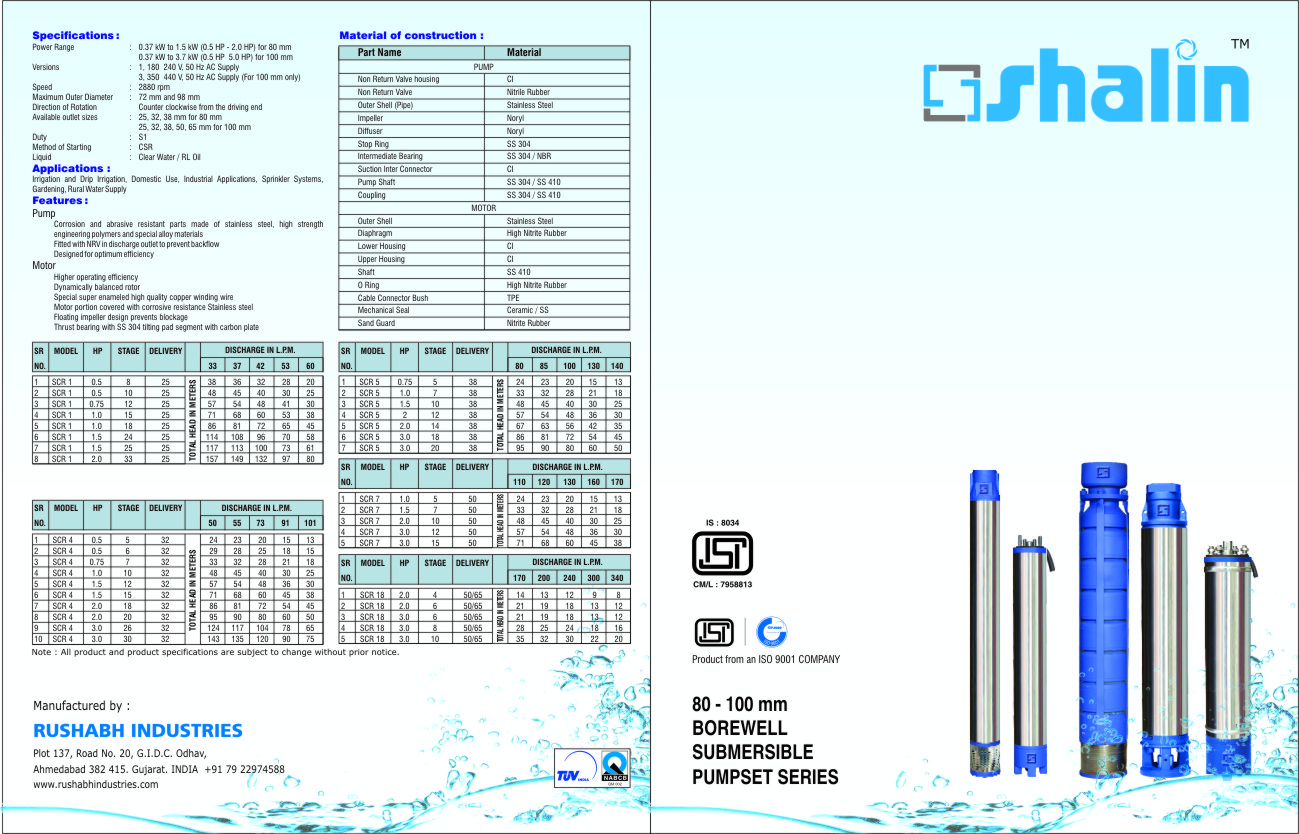

Download Product Catalogue
