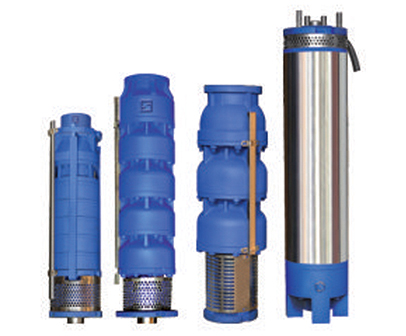

150-200 mm borewell submersible pumpset
| 150 mm (6”) | 200 mm (8”) | 175 mm (6/7”) | 200 mm (6/8”) | |
|---|---|---|---|---|
| Power Range: | 2.2 kW – 15 kW (3 HP to 20 HP) |
3.72 kW – 11.1 kW (5 HP to 15 HP) |
3.72 kW – 11.1 kW (5 HP to 15 HP) |
3.72 kW – 11.1 kW (5 HP to 15 HP) |
| Speed: | 2900 rpm | 2900 rpm | 2900 rpm | 2900 rpm |
| Versions: | 380-415V 3Ø, 50 Hz A.C Supply |
380-415V 3Ø, 50 Hz A.C Supply |
380-415V 3Ø, 50 Hz A.C Supply |
380-415V 3Ø, 50 Hz A.C Supply |
| Nominal outlet size | 50, 65, 80 and 100 mm | 80, 100, 125 and 150 mm |
80, 100 mm | 80, 100, 125 and 150 mm |
| Degree of protection | IP 58 | IP 58 | IP 58 | IP 58 |
| Maximum outer diameter | 143 and 145 mm | 187 mm | 165 mm | 195 mm |
| Direction of rotation | Electrically reversible for 3Ø | Counterclockwise from driving end | Counterclockwise from driving end | Counterclockwise from driving end |
| Type of Duty: | S1 (Continuous) | S1 (Continuous) | S1 (Continuous) | S1 (Continuous) |
| Method of starting | DOL upto 5.5 kW and SD upto 15 kW for 3Ø | DOL upto 5.5 kW and SD upto 15 kW, ATS upto 15 kW |
DOL upto 5.5 kW and SD upto 15 kW | DOL upto 5.5 kW and SD upto 15 kW |
| Maximum starts per hour | 20 times | 10 times | 20 times | 10 times |
- Agricultural farms
- Sprinkler irrigation
- Drip irrigation
- Water supply in industrial / civil establishments
- Construction sites
- Mining applications
- Ornamental fountains
Motor
- Totally enclosed, water filled, Squirrel Cage, 2 pole (3000 rpm Syn Speed).
- Three piece construction with centre S.S – Ease in rewinding and longer life
- Special water resistant PVC insulated copper wire
- Specially designed thrust bearing – lower power consumption
- Epoxy coating treatment to all ferrous parts of the motor – Rust prevention & longer life
- Specially designed water filled and water lubricated motor
- Sand fighter seals to avoid sand entry
- Dynamically balanced rotor – Vibration free, longer life and better efficiency
- Energy efficient – Saves power and electricity usage
Pump
- Multi stage centrifugal pump with radial / mix flow type impeller design
- Suitable for normal sandy water application
- Dynamically balanced impellers with pump shaft – better efficiency & performance
- Non return valve fitted to discharge outlet to prevent backflow
- Stainless steel pump shaft – Rust prevention and longer life
- S S impellers – Better efficiency and longer life
| PUMP | 150 mm (6“) | 175 mm (7”) | 200 mm (8”) |
|---|---|---|---|
| Part Name | Material | Material | Material |
| Check Valve Housing | C.I | C.I | C.I |
| Check Valve Seat | Nitrile Butyl Rubber | Nitrile Butyl Rubber | Nitrile Butyl Rubber |
| Outer Shell | Stainless Steel | Stainless Steel | Stainless Steel |
| Impeller | SS 304 | SS 304 | SS 304 |
| Diffuser Chamber | C.I | C.I | C.I |
| Stop Ring | Stainless Steel | Stainless Steel | Stainless Steel |
| Intermediate Bearing (Sleeve / Bush) | SS 304 | SS 304 | SS 304 |
| Suction Inter Connector | C.I | C.I | C.I |
| Pump Shaft | SS 410 | SS 410 | SS 410 |
| Coupling | SS 410 | SS 410 | SS 410 |
| Cable Guard | SS 202 | SS 202 | SS 202 |
| Inlet Screen | SS 202 | SS 202 | SS 202 |
| MOTOR | 150 mm (6 “) | 200 mm (8”) |
|---|---|---|
| Outer Shell | Stainless Steel | Stainless Steel |
| Diaphragm | High Nitrile Butyl Rubber | High Nitrile Butyl Rubber |
| Lower Housing | C.I | C.I |
| Upper Housing | C.I | C.I |
| Shaft | SS 410 | SS 410 |
| Shaft Seal | Nitrile Butyl Rubber | Nitrile Butyl Rubber |
| Motor Base | C.I | C.I |
| Thrust Assembly | Stainless Steel and Graphite Carbon | Stainless Steel and Graphite Carbon |

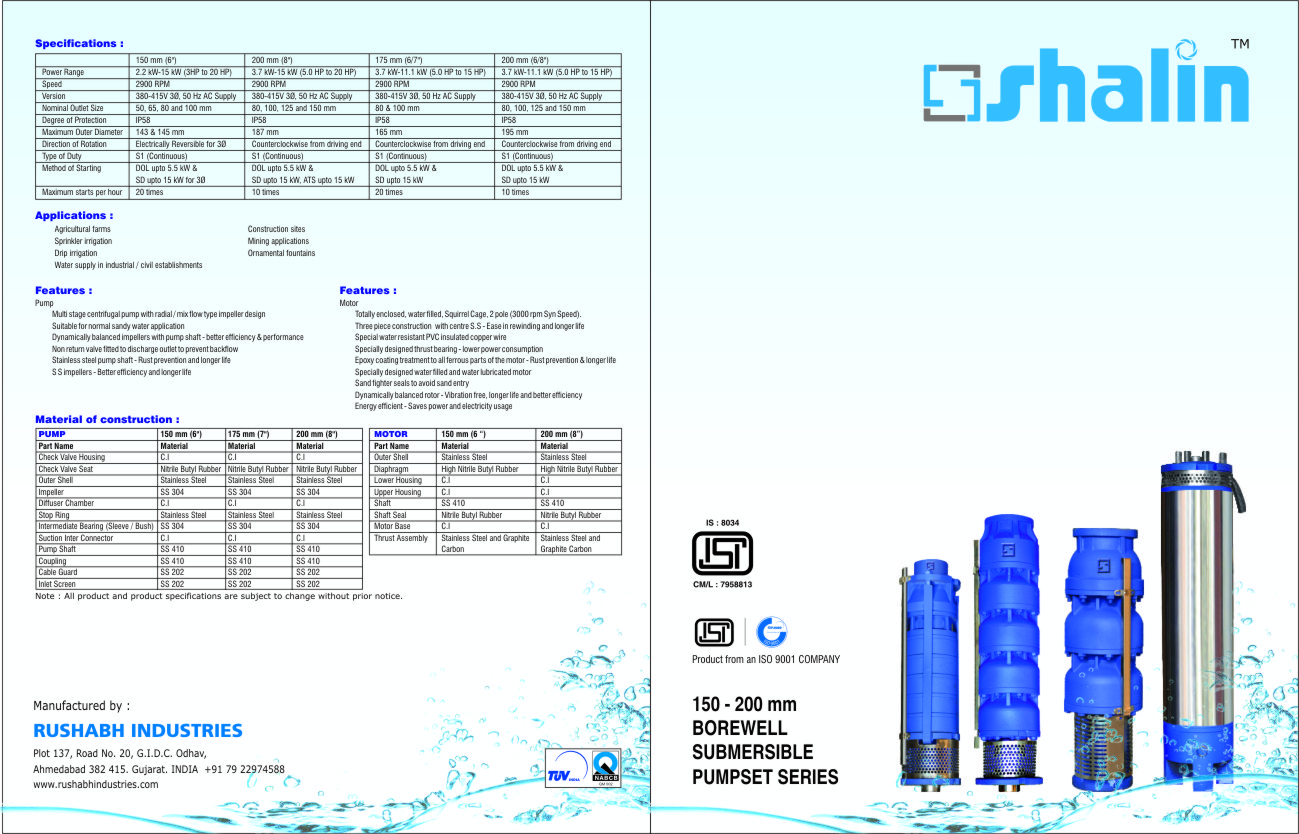

Download Product Catalogue
